Introduction

The Builder pattern is a creational design pattern described in the book “Design Patterns: Elements of Reusable Object-Oriented Software” by the Gang of Four. This pattern is used to construct complex objects step by step, allowing the same construction process to create different representations of an object.

The key concept behind the Builder pattern is to separate the construction of an object from its representation. By doing so, the same construction process can be used to create different representations. This pattern provides a way to create an object incrementally, specifying different attributes or steps of the construction process as needed.

Real-world examples

In our everyday life, the builder design pattern is used in fast-food restaurants. The same procedure is always used to prepare a burger and the packaging (box and paper bag), even if there are many different kinds of burgers (classic, cheeseburger, and more) and different packages (small-sized box, medium-sized box, and so forth).

Quoted from Chapter 16 in Advanced Python Programming ( Second Edition)

The difference between a classic burger and a cheeseburger is in the representation, and not in the construction procedure. In this case, the director is the cashier who gives the crew instructions about what needs to be prepared, and the builder is the person from the crew that takes care of a specific order.

Benefits

Here are the benefits of using the Builder pattern:

1. Flexibility of a product’s internal representation.
2. Isolation of construction and representation.
3. Finer control over the construction process. The Director instructs the Builder to build parts of a product step by step. Only when the product is finished does the Director retrieve it from the builder.

Participants

There are four participants involved in the Builder pattern:

• Builder:
  • specifies an abstract interface for creating parts of a Product object.
• Concrete Builder:
  • implements the Builder interface to provide specific construction steps and configurations.
  • defines and keeps track of the representation it creates.
  • provides an interface for retrieving the product.
• Director:
  • constructs an object using the Builder interface.
• Product:
  • represents the object being constructed.
• Client:
  • creates instances of the builder and director.
  • uses the director to construct different types of the product by calling the appropriate construction methods. (The builder, then, handles requests from the director and adds parts to the product.)
  • retrieves the product from the builder.

Structure illustration

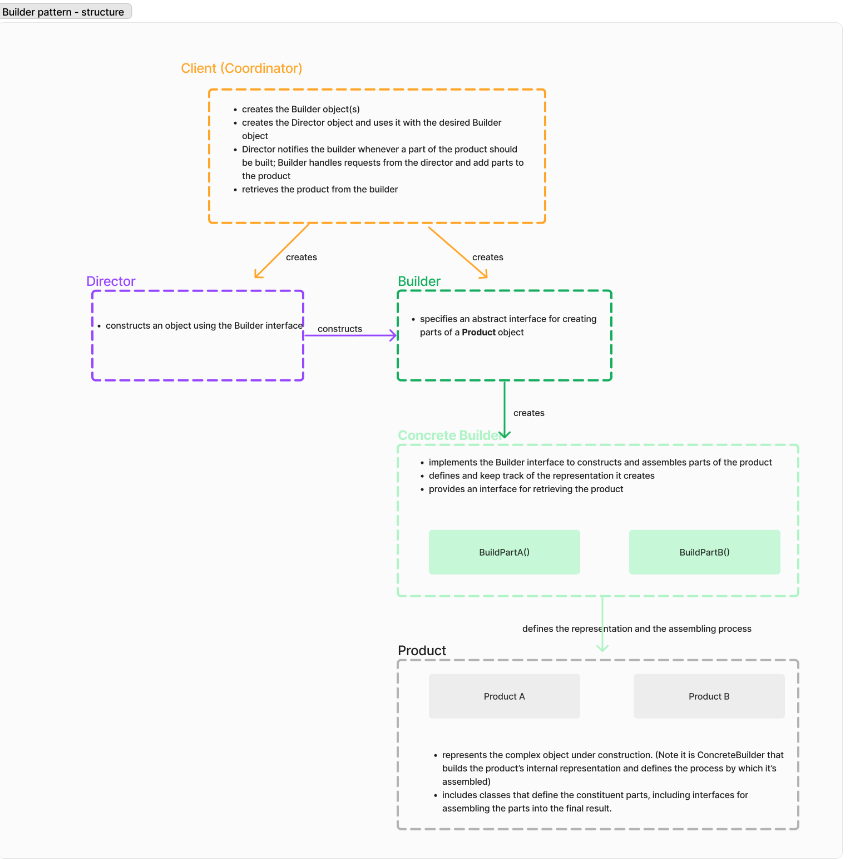

The following picture illustrates the relationships among the components of the Builder pattern.

Code implementation (Python)

In the following code example in Python, the Product Pizza presents the pizza object being constructed. It has attributes for crust, toppings, and cheese.

The Builder PizzaBuilder class provides the construction methods to set the attributes of a pizza, the product, step by step. It keeps track of the product being built.

The MargheritaBuilder and PepperoniBuilder classes inherit from the PizzaBuilder class. Each concrete builder class provides its own implementation of the construction methods (set_crust(), add_topping(), set_cheese()), allowing customization of the construction process for Margherita and Pepperoni pizzas, respectively. The concrete builders represent different variations of the product construction, adhering to the Concrete Builder participant in the Builder pattern.

The Director PizzaDirector manages the construction process using the builder. It defines higher-level construction methods that utilize the builder’s methods to construct specific configurations of the product.

The client code creates instances of the builder and director. It then uses the director to construct different types of pizzas by calling the appropriate construction methods. Finally, the builder returns the constructed pizza objects.

```python

Product

class Pizza: def init(self): self.crust = None self.toppings = [] self.cheese = None

def __str__(self):
    return f"Pizza with {self.crust} crust, {','.join(self.toppings)}, and {self.cheese} cheese"

Builder

class PizzaBuilder: def init(self): self.pizza = Pizza()

def set_crust(self, crust):
    self.pizza.crust = crust

def add_topping(self, topping):
    self.pizza.toppings.append(topping)

def set_cheese(self, cheese):
    self.pizza.cheese = cheese

def get_pizza(self):
    return self.pizza

Concrete Builder classes

class MargheritaBuilder(PizzaBuilder): def init(self): super().init()

def set_crust(self, crust):
    self.pizza.crust = crust

def add_topping(self, topping):
    if topping in ["tomato sauce", "mozzarella cheese"]:
        self.pizza.toppings.append(topping)
    else:
        raise ValueError("Invalid topping for Margherita pizza.")

def set_cheese(self, cheese):
    self.pizza.cheese = cheese

class PepperoniBuilder(PizzaBuilder): def init(self): super().init()

def set_crust(self, crust):
    self.pizza.crust = crust

def add_topping(self, topping):
    if topping in ["tomato sauce", "mozzarella cheese", "pepperoni"]:
        self.pizza.toppings.append(topping)
    else:
        raise ValueError("Invalid topping for Pepperoni pizza.")

def set_cheese(self, cheese):
    self.pizza.cheese = cheese

Director

class PizzaDirector: def init(self, builder): self.builder = builder

def construct_pizza(self):
    # Director coordinates the construction process
    self.builder.set_crust("thin")
    self.builder.add_topping("tomato sauce")
    self.builder.add_topping("mozzarella cheese")

Client who orchestrates the builder and director

margherita_builder = MargheritaBuilder() pepperoni_builder = PepperoniBuilder()

director = PizzaDirector(margherita_builder) director.construct_pizza() margherita_pizza = margherita_builder.get_pizza() print(margherita_pizza)

Output: Pizza with thin crust, tomato sauce, mozzarella cheese, and None cheese

director = PizzaDirector(pepperoni_builder) director.construct_pizza() pepperoni_pizza = pepperoni_builder.get_pizza() print(pepperoni_pizza)

Output: Pizza with thin crust, tomato sauce, mozzarella cheese, and None cheese

``
